Bootstrap Tabs Border

Introduction

In certain cases it is actually quite practical if we can certainly simply place a few segments of information and facts sharing the same area on web page so the visitor simply could browse through them without any really leaving the screen. This gets easily realized in the new 4th version of the Bootstrap framework through the

.nav

and

.tab- *

classes. With them you might simply make a tabbed panel with a various forms of the web content held inside each and every tab permitting the user to just check out the tab and come to check out the intended content. Let us take a closer look and discover how it is actually executed. ( click this)

The way to put into action the Bootstrap Tabs Set:

To start with for our tabbed section we'll need to have certain tabs. To get one create an

<ul>

component, designate it the

.nav

and

.nav-tabs

classes and place certain

<li>

elements inside having the

.nav-item

class. Within these kinds of list the real url features need to accompany the

.nav-link

class specified to them. One of the hyperlinks-- typically the initial really should likewise have the class

.active

since it will stand for the tab being currently exposed as soon as the web page gets packed. The web links likewise need to be delegated the

data-toggle = “tab”

attribute and every one should aim at the correct tab section you would desire presented with its own ID-- as an example

href = “#MyPanel-ID”

What's brand new within the Bootstrap 4 system are the

.nav-item

and

.nav-link

classes. Additionally in the prior edition the

.active

class was selected to the

<li>

component while now it get appointed to the url in itself.

And now when the Bootstrap Tabs Events structure has been certainly prepared it's opportunity for producing the panels keeping the concrete web content to become displayed. Primarily we need to have a master wrapper

<div>

element with the

.tab-content

class assigned to it. In this specific component a number of features carrying the

.tab-pane

class must take place. It as well is a smart idea to provide the class

.fade

just to assure fluent transition when switching among the Bootstrap Tabs Styles. The element which will be shown by on a web page load must in addition carry the

.active

class and in case you aim for the fading shift -

.in

coupled with the

.fade

class. Each

.tab-panel

should really come with a special ID attribute which in turn will be used for attaching the tab links to it-- just like

id = ”#MyPanel-ID”

to fit the example link from above.

You have the ability to also set up tabbed control panels working with a button-- just like visual appeal for the tabs themselves. These are also indicated like pills. To accomplish it simply make sure instead of

.nav-tabs

you assign the

.nav-pills

class to the

.nav

element and the

.nav-link

links have

data-toggle = “pill”

instead of

data-toggle = “tab”

attribute. ( additional info)

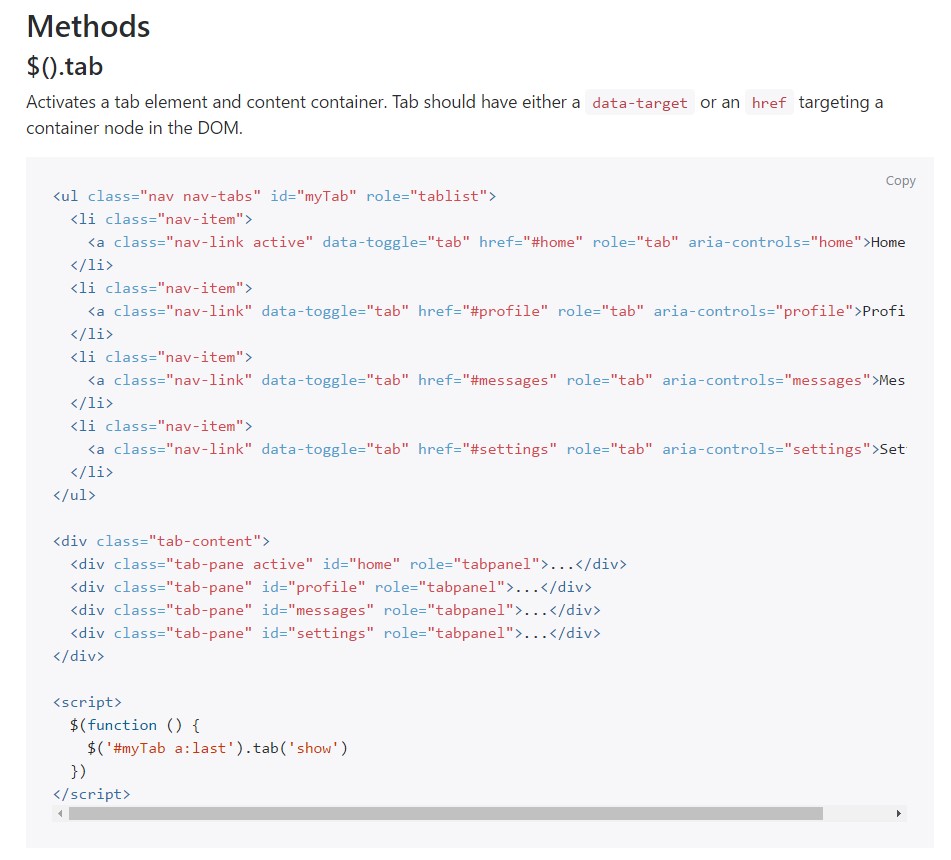

Nav-tabs ways

$().tab

Activates a tab feature and material container. Tab should have either a

data-target

or an

href

targeting a container node in the DOM.

<ul class="nav nav-tabs" id="myTab" role="tablist">
  <li class="nav-item">
    <a class="nav-link active" data-toggle="tab" href="#home" role="tab" aria-controls="home">Home</a>
  </li>
  <li class="nav-item">
    <a class="nav-link" data-toggle="tab" href="#profile" role="tab" aria-controls="profile">Profile</a>
  </li>
  <li class="nav-item">
    <a class="nav-link" data-toggle="tab" href="#messages" role="tab" aria-controls="messages">Messages</a>
  </li>
  <li class="nav-item">
    <a class="nav-link" data-toggle="tab" href="#settings" role="tab" aria-controls="settings">Settings</a>
  </li>
</ul>

<div class="tab-content">
  <div class="tab-pane active" id="home" role="tabpanel">...</div>
  <div class="tab-pane" id="profile" role="tabpanel">...</div>
  <div class="tab-pane" id="messages" role="tabpanel">...</div>
  <div class="tab-pane" id="settings" role="tabpanel">...</div>
</div>

<script>
  $(function ()
    $('#myTab a:last').tab('show')
  )
</script>

.tab(‘show’)

Chooses the delivered tab and reveals its own associated pane. Any other tab which was previously picked comes to be unselected and its associated pane is covered. Returns to the caller just before the tab pane has in fact been demonstrated (i.e. right before the

shown.bs.tab

activity occurs).

$('#someTab').tab('show')

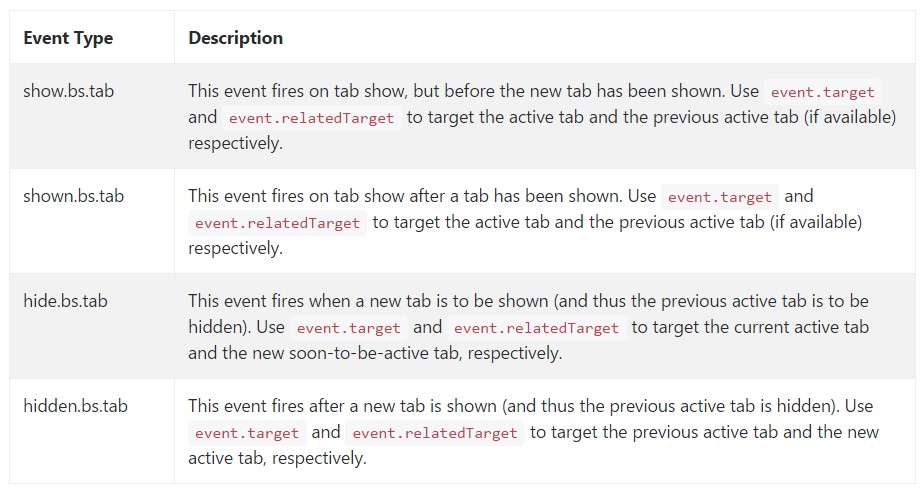

Activities

When showing a brand-new tab, the events fire in the following ordination:

hide.bs.tab

( on the existing active tab).

show.bs.tab

( on the to-be-shown tab).

hidden.bs.tab

( on the previous active tab, the same one when it comes to the

hide.bs.tab

event).

shown.bs.tab

( on the newly-active just-shown tab, the exact same one as for the

show.bs.tab

event).

If no tab was pretty much active, then the

hide.bs.tab

and

hidden.bs.tab

events will certainly not be fired.

$('a[data-toggle="tab"]').on('shown.bs.tab', function (e)
  e.target // newly activated tab
  e.relatedTarget // previous active tab
)

Final thoughts

Well generally that is actually the approach the tabbed sections get developed by using the latest Bootstrap 4 version. A point to pay attention for when building them is that the different materials wrapped in each tab control panel need to be more or less the exact size. This are going to really help you avoid some "jumpy" behaviour of your webpage when it has been already scrolled to a particular place, the website visitor has begun looking through the tabs and at a specific moment comes to open a tab along with extensively additional web content then the one being certainly discovered right before it.
